P. 21

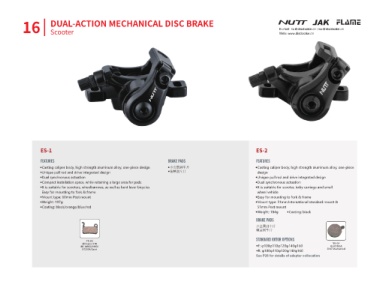

15 DUAL-ACTION MECHANICAL DISC BRAKE 16 DUAL-ACTION MECHANICAL DISC BRAKE
Road Bike
Scooter
S-7
ES-1 ES-2
FEATURES
FEATURES BRAKE PADS FEATURES
◆高強度鑄造鋁合金卡鉗 ◆Casting caliper body, high strength aluminum alloy, one-piece design ◆少金屬剎車片 ◆Casting caliper body, high strength aluminum alloy, one-piece
◆僅適用于公路自行車平面安裝方式 YK-01 ◆Unique pull rod and drive integrated design ◆銅基剎車片 design
Shimano
◆雙面驅動結構，獨特的浮動拉桿創新設計 Deore Mechanical
◆活動法蘭設計，有效降低制動能量損耗 ◆Dual synchronous actuation ◆Unique pull rod and drive integrated design
◆易于安裝與調整 ◆Compact installation space, while retaining a large area for pads ◆Dual synchronous actuation
◆安裝類型：前70mm后34mm ◆It is suitable for scooters, wheelbarrows, as well as bent lever bicycles ◆It is suitable for scooter, baby carriage and small
◆涂裝：黑色 Easy for mounting to fork & frame wheel vehicle
K2-B
F-Φ160(34→70mm) ◆Mount type: 60mm Post mount ◆Easy for mounting to fork & frame
◆Weight: 197g ◆Mount type: 51mm International standard mount &
BRAKE PADS ◆Coating: black/orange/blue/red 51mm Post mount
◆Weight: 184g ◆Coating: black
◆少金屬剎車片
◆銅基剎車片 BRAKE PADS
K2
少金屬剎車片
F-Φ140(34→70mm)
銅基剎車片
STANDARD ROTOR OPTIONS YK-05 STANDARD ROTOR OPTIONS
Shimano XTR YK-03
ALHONGA
◆F: φ140φ160 BR-M965/M966 ◆F: φ100φ110φ120φ140φ160 SNG Mechanical
XT2004/Saint
◆R: φ140φ160 K1 ◆R: φ100φ110φ120φ140φ160
See P25 for details of adapter collocation R-Φ160(34mm) See P26 for details of adapter collocation
